CURT 45955 Trailer Hitch Multi-Ball Mount

Trailer Hitch Multi-Ball Mount

---

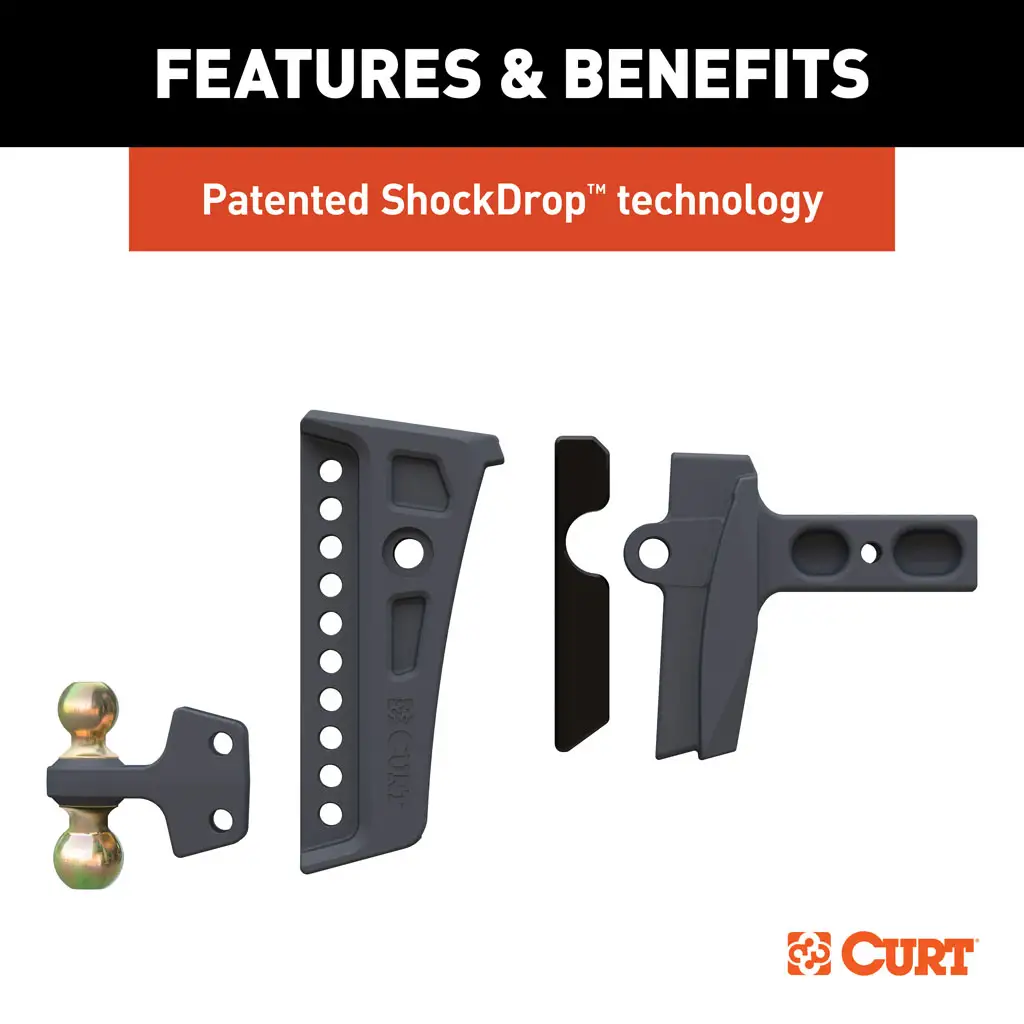

The CURT Rebellion XD adjustable cushion hitch ball mount upgrades your towing system with a smoother ride, greater control and enhanced longevity, all while providing exceptional towing power with virtually no need for maintenance. It is unlike any other ball mount because it operates using ShockDrop technology. At the core of this heavy-duty ball hitch is a cushion isolator that resists jerking, jarring, bumps, vibrations, chucking and rattling noise at the coupling point. Unlike a cushion hitch or torsion hitch that uses airbags or bearings, ShockDrop offers extended resistance to wear without the need for maintenance. The result is a more comfortable drive, increased driver control and better management of the vehicle-trailer combination in events of sudden braking. The adaptive, suspension mechanism and lightweight design of this cushion hitch help minimize stress on your vehicle and its suspension and braking systems. The Rebellion XD shock-absorbing hitch is also an adjustable trailer hitch ball mount, featuring a highly versatile vertical shank that promotes level towing, even with large, lifted trucks. The vertical shank has 8 height adjustment positions with a maximum drop of 8 inches and rise of 1 inch (shank cannot be flipped to rise position). For dependable towing strength, the Rebellion XD cushion hitch ball mount is tested and rated for 10,000 pounds for the 2-inch ball and 20,000 pounds for the 2-5/16-inch ball (limited to lowest-rated towing component). It has a standard 2-1/2-inch x 2-1/2-inch shank. For long-lasting weather resistance, the Rebellion XD is protected with a textured, dark grey teridium finish to withstand rain, dirt, UV damage and other corrosive threats.

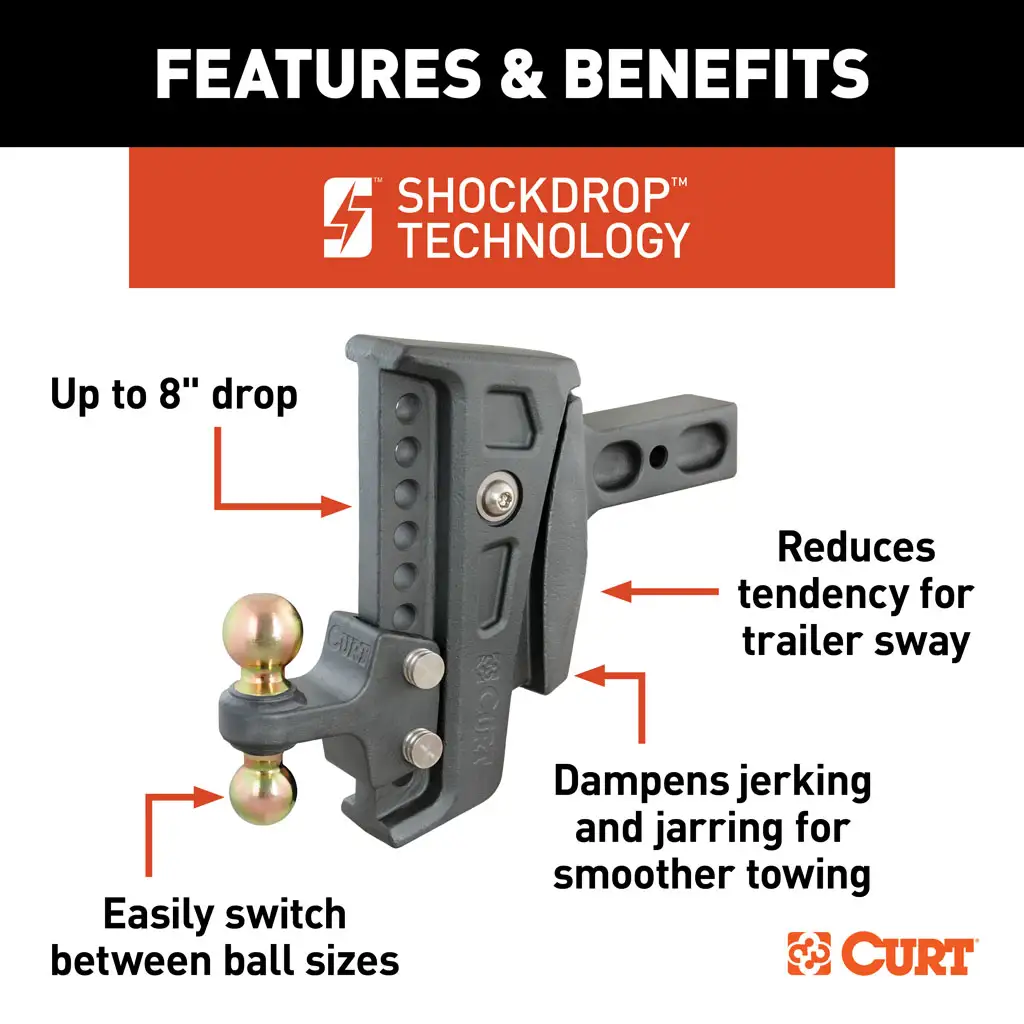

• Dynamic, adaptive suspension ball mount featuring ShockDrop technology
• Increases driver control by reducing tendency for trailer sway
• Improved trailer control during events of sudden braking
• Virtually maintenance-free with no airbag or bearings to service
• Minimizes stress on tow vehicle's suspension and brakes for extended longevity
• Adjustable, 8-position head for precise leveling with different trailers
• 8" maximum drop and 1" rise (shank cannot be flipped)
• Cast steel construction for dependable towing power
• Textured, dark grey teridium finish for a premium look on your vehicle
• 2" ball rated for 10,000 lbs. GTW; 2-5/16" ball rated for 20,000 lbs. GTW
• Fits trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening
• Limited lifetime warranty (one-year finish, one-year parts)
• CURT part number: 45955

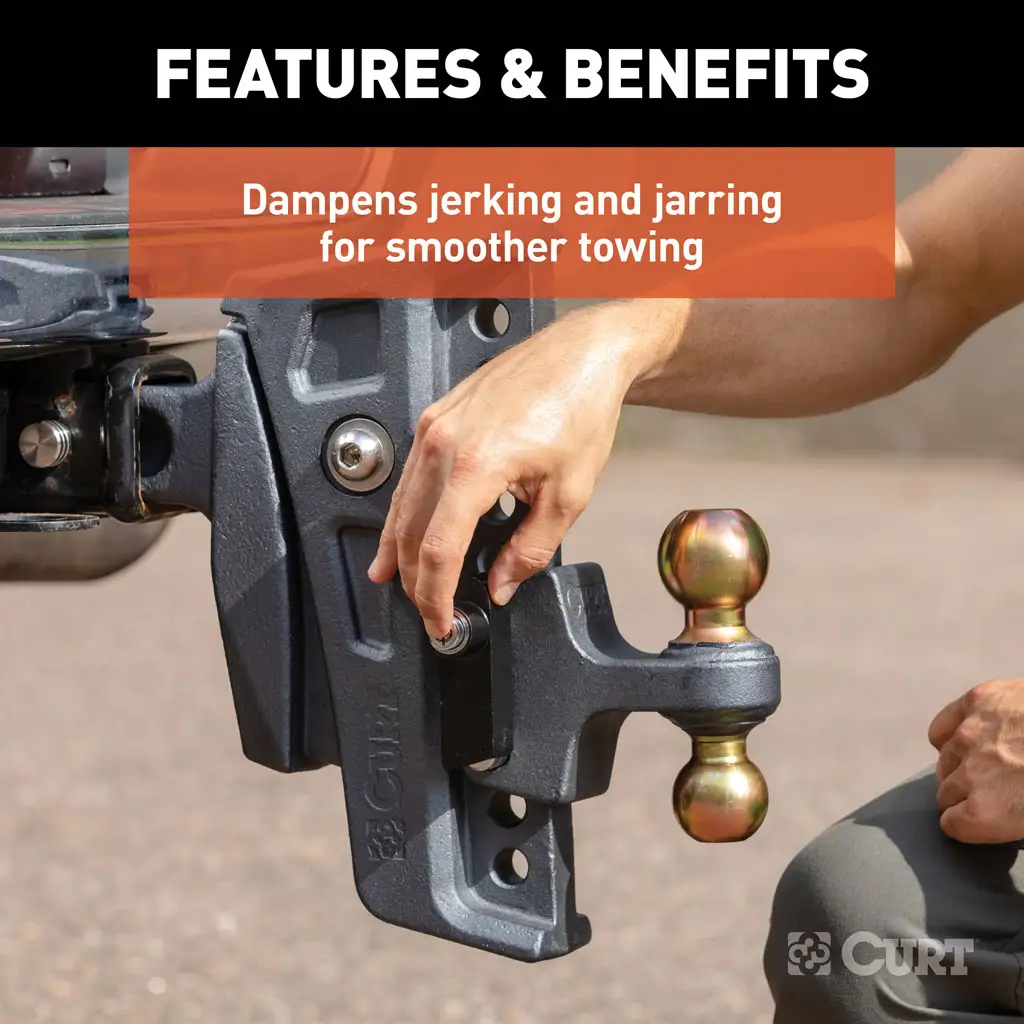

• Dampens jerking and jarring from bumps and potholes for smoother towing
• Cushioned isolator reduces rattling and vibration for a more comfortable ride

---

Application Summary

Year	Make / Model
CURT	45955 Rebellion XD Adjustable Cushion Hitch with Dual Ball, 2-1/2-Inch Receiver, 2, 2-5/16-In Balls, 20,000 lbs, 8-In Drop
